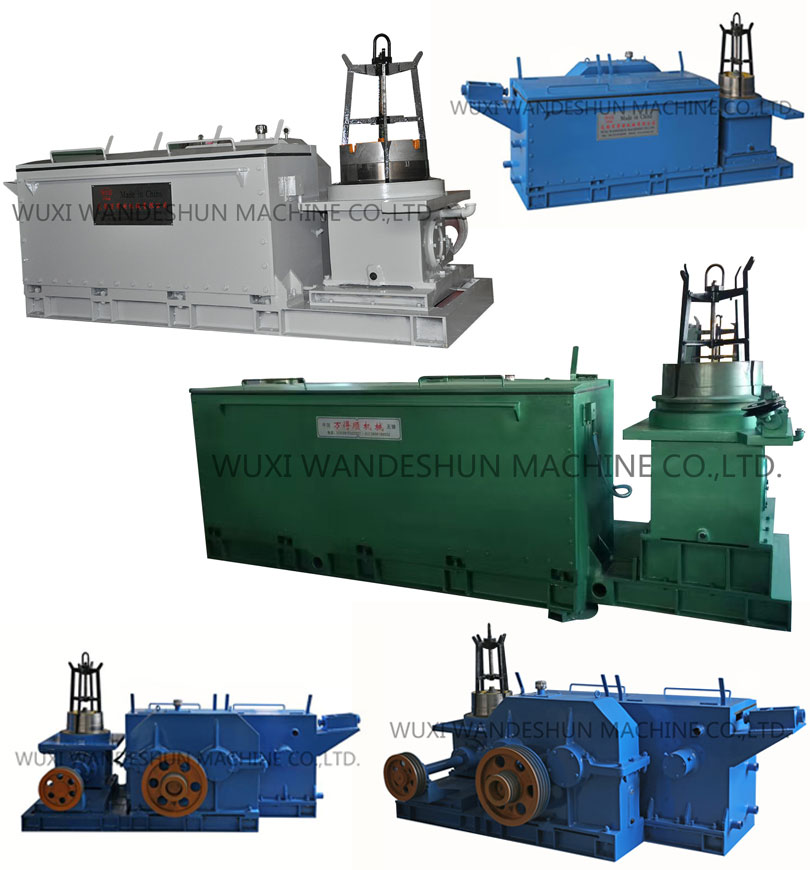

水箱拉絲機

水箱拉絲機

Items	Unit	LT8/ 560- 650	LT11/ 560- 650	LT13/ 560- 650	LT15/ 500- 560		LT17/ 500- 560	LT11/ 450	LT13/ 450	LT15/ 450
Diameter of capstan	mm	560/650	560/650	560/650	500/650		500/650	450	450	450
Drawing dies	time	8	11	13	15		17	11	13	15
Max wire diameter	mm	Φ8~6.5	Φ8~6.5	Φ8~6.5	Φ6.5		Φ6.5	Φ4.5	Φ4.5	Φ4.5
Min outlet diameter	mm	Φ4~3.0	Φ3.0~2.2	Φ2.5~2.0	Φ1.6		Φ1.4	Φ1.8	Φ1.4	Φ1.2
Drawing speed	m/min	200	250	250	280		280	260	280	280
Into the line intensity	Mpa	≤1150	≤1150	≤1150	≤1150		≤1150	≤1150	≤1150	≤1150
The total compression ratio	%	75~ 78.70	85.94~ 88.54	90.23~ 90.53	93.94		95.36	84	90.32	92.89
Average compression ratio	%	15.91~ 17.58	16.33~ 17.88	16.38~ 16.58	17.05		16.52	15.35	16.44	16.16
Motor power	Kw	155~130	130	130	130		130~ 90	75	75	75
Dimensions	mm	5800×3500×1840						5780×3300×1640
Weight	t	11	11	11	11	11		9.5	9.5	9.5

Reducer of the machine applies 8-moudule herringbone gear and the gear of inlet is 10-moudle with speed ratio of 1:1. Material for axis of high-speed gear is high-frequency quenching 40Cr. Tower wheel can be made from common cast steel 55#, common cast steel 55# with high-frequency quenching, and common cast steel #55 painted by tungsten carbide according to customers' demand. Transmission bearings are all famous products. Charging system applied sectional coupling that obtain proper bearing of the axis. Reducer, wet box and charging box are on the same base easy installation and lifting. The surface painting is of high grade and both internal and external of electric-control cabint applies plastic-apraying process. It is divided into common control and variable-frequency control. Electric parts are all Chinese or international famous brands.

Items	Unit	LTA11/350	LTA13/350	LTA15/350	LT15/350	LT17/350	LT15/200
Diameter of capstan	mm	350	350	350	350	250	250
Drawing dies	time	11	13	15	15	17	15
Max wire diameter	mm	Φ3.5	Φ3.5	Φ3.5	Φ2.2~2.8	Φ1.2~1.7	Φ1.0~1.2
Min outlet diameter	mm	Φ1.5	Φ1.3	Φ1.1	Φ0.6~0.8	Φ0.4~0.6	Φ0.28~0.36
Drawing speed	m/min	330	330	330	420	420	315
Into the line intensity	Mpa	≤1100	≤1100	≤1100	≤1100	≤1100	≤1100
The total compression ratio	%	81.63	86.20	90.12	92	88	82
Average compression ratio	%	14.28	14.13	14.30	15.5	12.0	11.0
Motor power	Kw	55	55	55	37~45	18.5~22	7.5~11
Dimensions	mm	5480x 3300x1640			2600x1300x1350		1700x1240x1280
Weight	t	4	4	4	3	2.8	1.5
